HX Stomp Ableton Controller
The Complete Line 6 HX Stomp Solution for Ableton Live
HX Stomp Control by Sonilux is a comprehensive Max for Live MIDI device that transforms Ableton Live into a powerful command center for your Line 6 HX Stomp. This device gives you complete automation control over all crucial aspects of your Helix directly from Ableton Live, and most importantly trigger by a simple midi note.
Designed for the touring guitarist, this is the quickest, easiest way to have your patches changes to your backings, or just simple controlled via Ableton. This best solution for Automating your patch changes, effects and HX Control through live.
Key Features
- Complete Preset Control: Trigger 96 presets (unless snapshots enabled)
- Footswitch Control: Toggle any of the 3 footswitches directly from Live
- Special Functions: Control tuner, tap tempo, and preset navigation
- Intelligent Debounce: Prevents accidental double-triggering
-
No Overlapping Controls: Special functions use high-octave notes to prevent conflicts with preset selection
Device Versions

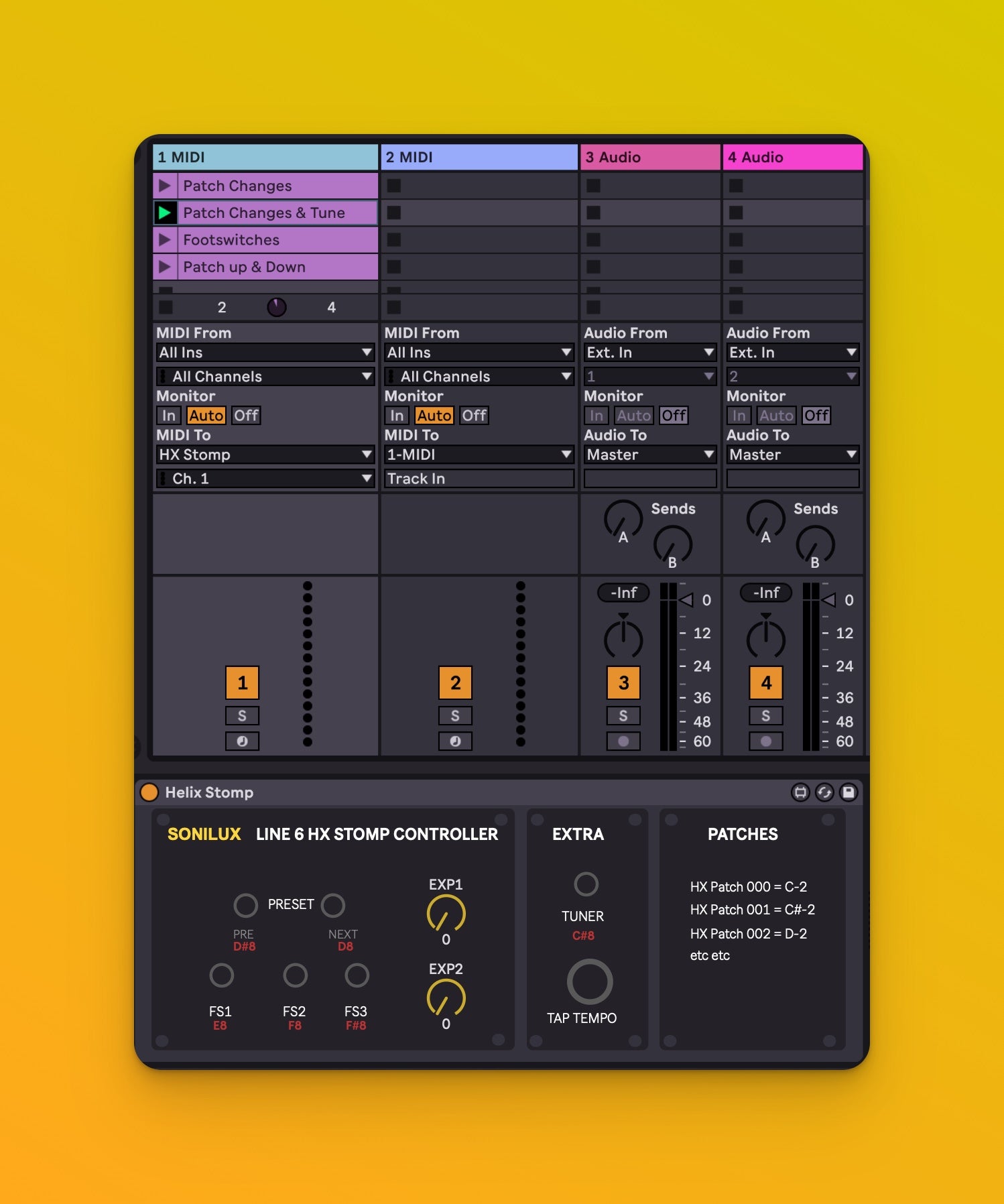

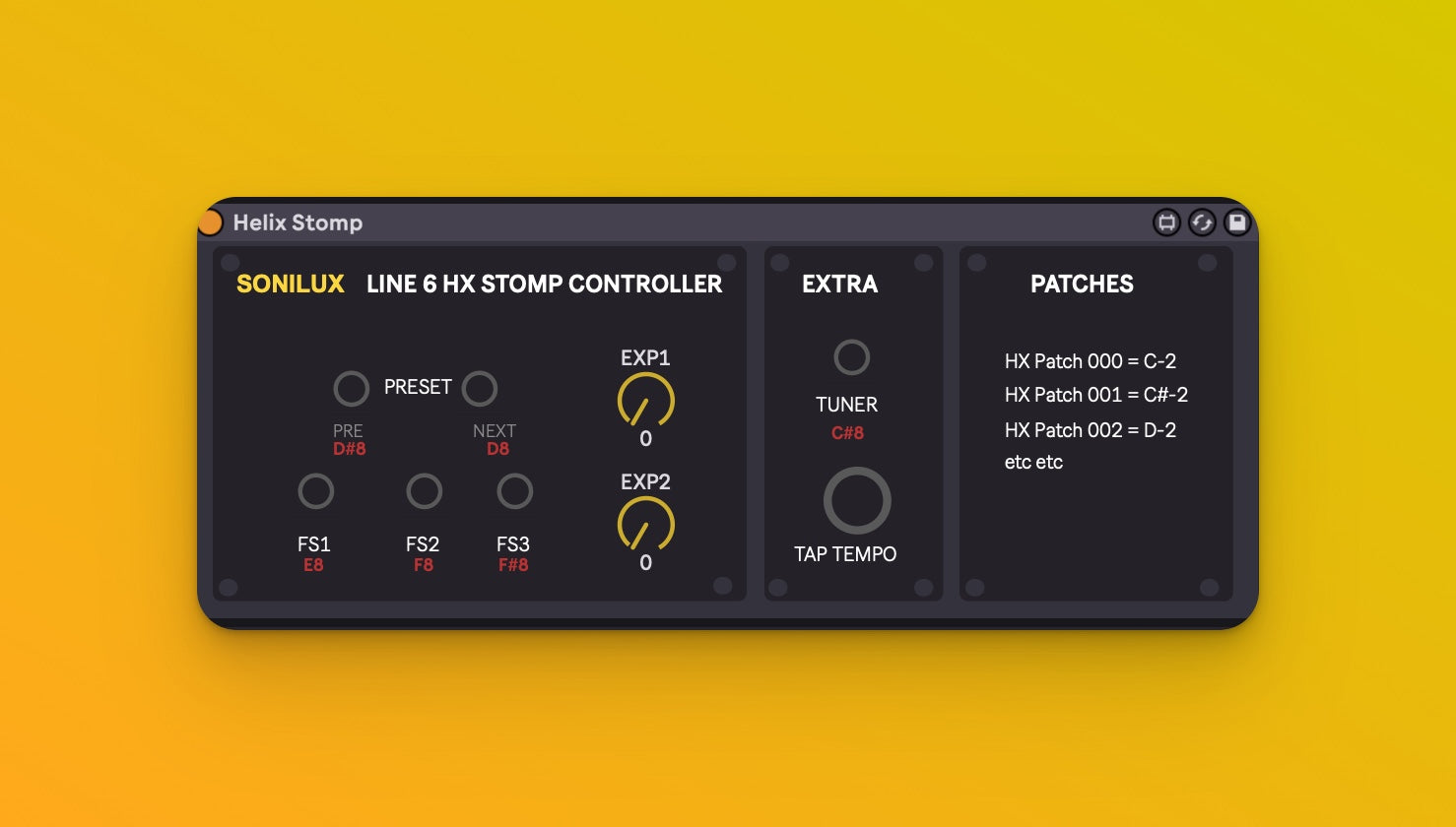

HX Stomp Control
Optimized for the compact HX Stomp, with mappings for:
- 96 presets available
- 3 footswitches
- Tuner and preset navigation
We've mapped the MIDI so you don't have to
Patch Selection
| Note Name | Function |
|---|---|
| C-2 to B6 (notes 0-95) | Select Patches 1-96 |
Special Function Mappings
| Function | Note |
|---|---|
| Tuner | C#8 |
| Next Preset | D8 |
| Previous Preset | D#8 |
| FS1 | E8 |
| FS2 | F8 |
| FS3 | F#8 |
Usage Scenarios
Live Performance

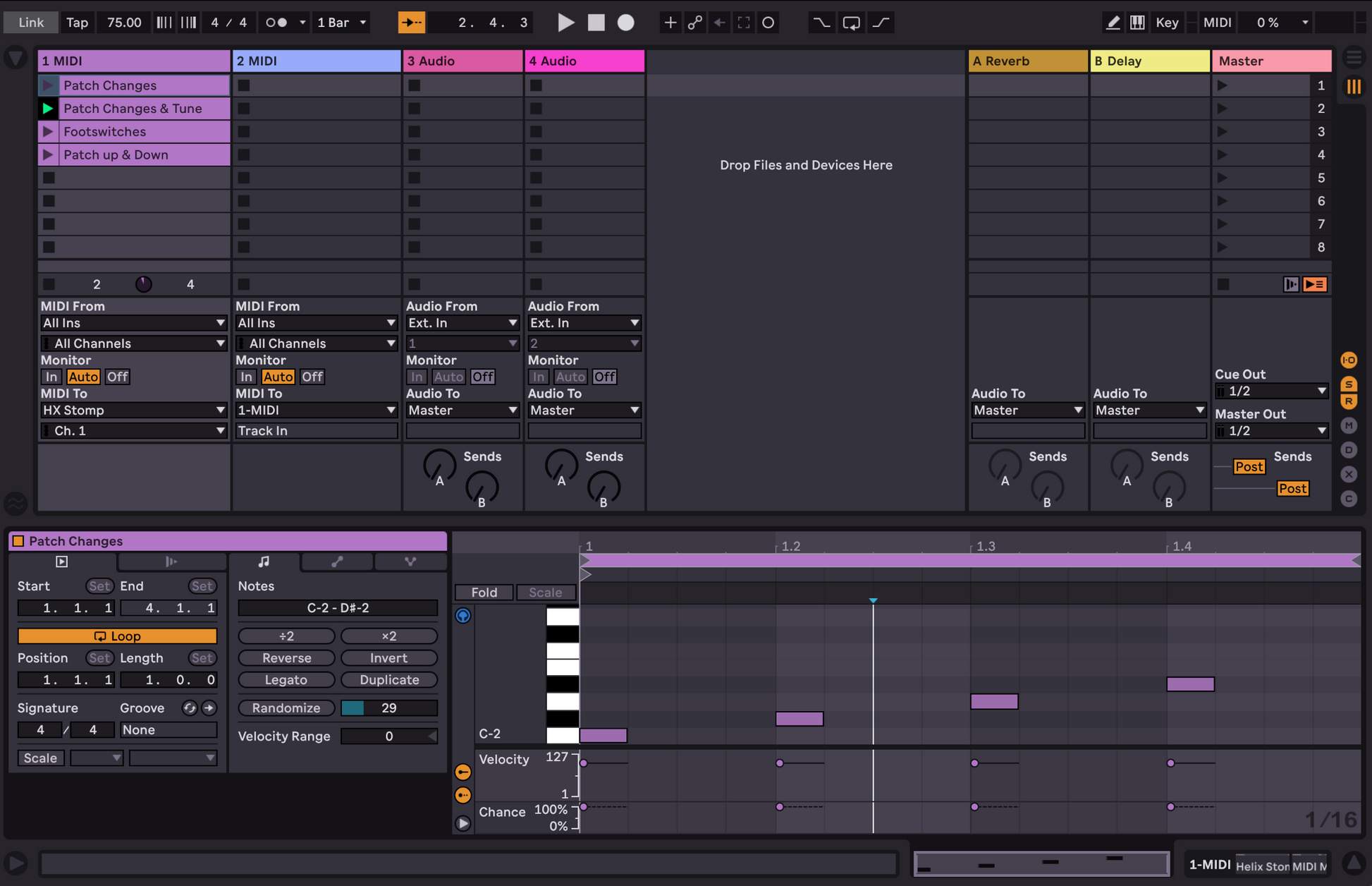

- Create a dedicated MIDI track with clips for each song section
- Automate preset changes, snapshot switches, and effects toggling exactly when you need them
- Use Follow Actions to create complex preset sequences
Studio Recording
- Seamlessly integrate your Helix into your DAW workflow
- Automate effects changes without touching your pedal
- Save your entire performance, including all Helix changes, in a single project
Sound Design
- Quickly audition different presets while working on a track
- Create complex effect sequences by automating multiple parameters
- Develop unique sounds by controlling your Helix in ways impossible with just footswitches
Use Simple MIDI Notes to control
Getting Started
- Install the device in your Max for Live Devices folder
- Create a MIDI track and add the Ultimate Helix Control device
- Set the track's output to your Helix
- Use MIDI notes or clips to control your Helix
Requirements
- Ableton Live 10 or later with Max for Live
- Line 6 Helix, Helix LT, HX Stomp, or HX Effects connected via USB or MIDI
Important notes: Requires MAX or MAX4LIVE (Included in Ableton Suite)
Tested in Ableton 11 Suite
Refunds will not be offered for digital products.
How to use:
Drag Folder from Downloads into Ableton > User Library > Presets > Midi Effects > Max Midi Effect
